Motor Kit School Project with Speed & Direction Controller (PWM) – DIY

Go Science Classroom Series — School Project & Educational Concept Model Kit

Connect the circuit. Select the direction. Adjust the speed. Watch the motor respond.

The Go Science Classroom Series Motor Kit is a hands-on DIY school project and educational working model that helps students explore how a DC motor can be controlled using Pulse Width Modulation—or PWM—speed control, a Forward/Reverse/OFF rocker switch, screw-terminal wiring and a clearly visible rotating propeller.

Students physically connect the power and motor wires, fit the propeller onto the motor shaft, select the rotational direction and gradually adjust the controller knob to observe changes in motor speed.

The propeller provides immediate visual feedback, making otherwise abstract concepts such as electrical polarity, duty cycle, motor direction and controlled mechanical motion easier to observe, explain and demonstrate.

Connect the Circuit → Select the Direction → Adjust the PWM Speed → Observe Motor Response

Suggested for Grades 7–12, this kit can support:

• School projects and educational working models
• Science exhibitions
• Classroom demonstrations
• STEM and electronics presentations
• Motor-control and circuit-wiring activities
• Robotics and automation concept presentations
• Practical assessments, reports and viva preparation
• Supervised home-learning demonstrations

Connect. Control. Reverse. Observe.

This DIY kit brings together four connected learning stages:

1. Connect the Circuit

Students connect the battery input and DC motor wires to the correct green screw terminals using the included precision screwdriver.

2. Select the Direction

The integrated three-position rocker switch allows the user to select:

• Forward
• OFF
• Reverse

Changing the switch position changes the polarity supplied to the motor, causing its rotational direction to change.

3. Adjust the Motor Speed

The PWM controller knob allows students to gradually increase or decrease the motor’s rotational speed.

4. Observe the Mechanical Response

The four-blade propeller makes speed and direction changes clearly visible during the demonstration.

What’s in the DIY Kit?

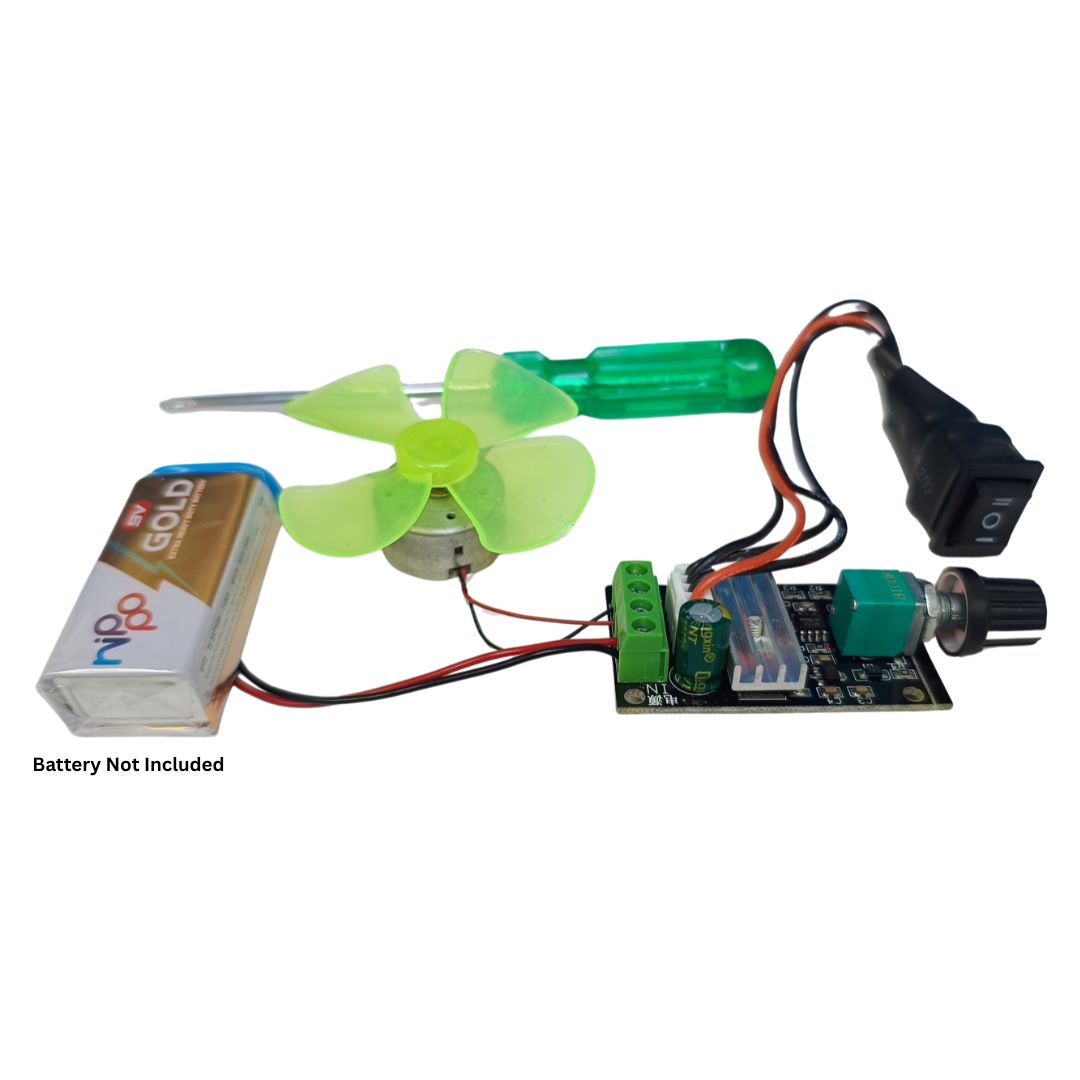

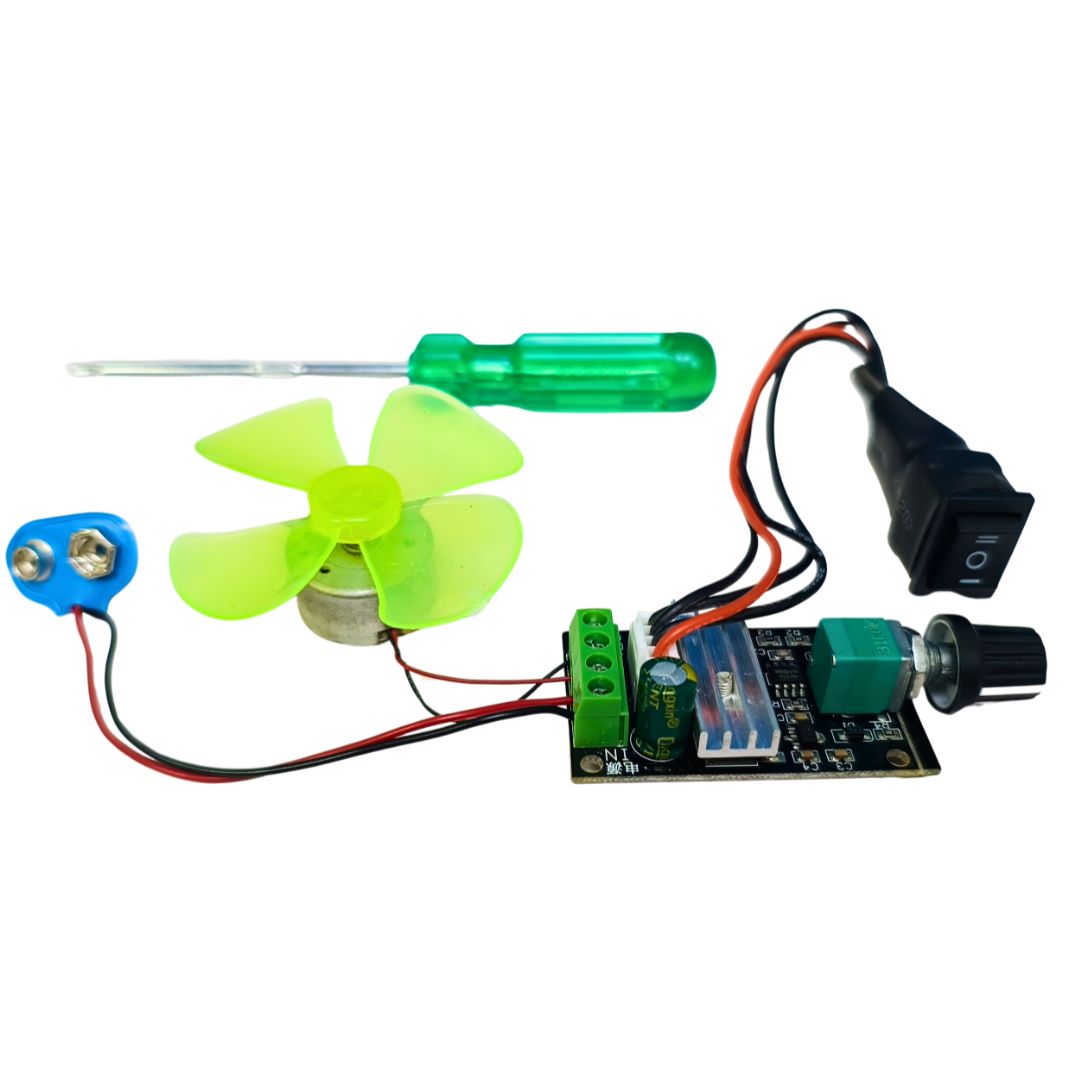

The kit contains the essential components required for the guided Motor Kit activity:

• PWM DC Motor Speed Controller Module
• Integrated Forward/Reverse/OFF three-position rocker switch and wire harness
• Adjustable PWM speed-control knob

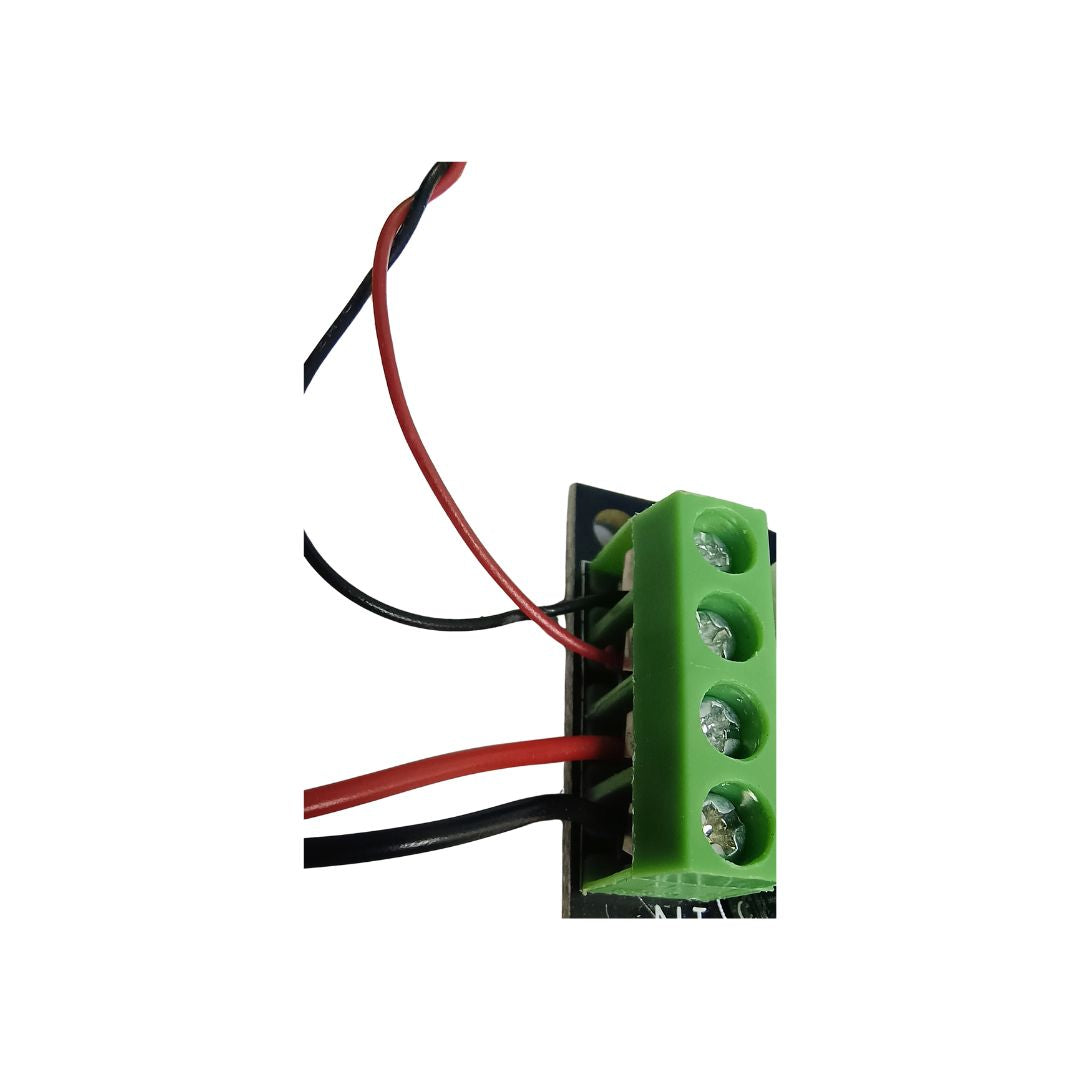

• Green screw-terminal connection blocks
• 4.5V DC motor with connecting wires
• Four-blade plastic propeller
• 9V battery snap connector
• Precision screwdriver
• Detailed digital instruction manual
• Step-by-step video demonstration
• Safety and troubleshooting guidance
• Concept recap
• Certificate of Completion

Required Separately

• One fresh 9V battery
• Battery is not included

No soldering equipment is required for the guided activity. The electrical connections are completed through the screw-terminal blocks using the included screwdriver.

Product Specifications

Important: The DC 6V–28V figure refers to the operating range of the supplied controller module. It must not be interpreted as permission to connect the included 4.5V motor directly to the maximum controller voltage. Use the kit only with the specified guided demonstration arrangement and follow the supplied instructions.

A Complete Guided Learning Experience

The Motor Kit is designed as more than a collection of loose components.

The supplied learning material guides students through:

• Identifying the controller, motor, terminals, switch and propeller
• Understanding the battery-input terminals
• Connecting the DC motor to the output terminals
• Connecting the Forward/Reverse/OFF rocker switch
• Attaching the propeller to the motor shaft
• Adjusting motor speed with the PWM knob
• Changing rotational direction
• Observing speed, direction and motor response
• Following safe wiring and operating practices
• Identifying and correcting common connection problems
• Reviewing the central concepts after completing the activity

The sequence allows students to move from component recognition to circuit connection, controlled operation, observation and explanation.

Detailed Full-Colour Digital Instruction Manual Included

A product-specific digital instruction manual is included through a dedicated manual QR code.

The manual includes:

• Kit introduction
• Component checklist
• Motor and controller identification
• Green terminal-block explanation
• PWM knob identification
• Forward/Reverse/OFF switch explanation
• Motor-shaft and propeller guidance
• PWM speed-control concept
• Direction-control concept
• Battery-input wiring
• Motor-output wiring
• Rocker-switch connection
• Propeller attachment
• Visual observation activities
• Safety guidance
• Troubleshooting support
• Concept recap
• Certificate of Completion

The manual QR code is separate from the video QR code.

A compatible internet-connected device is required to open the digital resource.

Step-by-Step Video Demonstration Included

A separate step-by-step video demonstrates the Motor Kit setup and operation.

The video can be accessed through:

1. This product page and the Go Science website
2. The official Go Science YouTube channel
3. The dedicated video QR code supplied for the kit

Official Motor Kit Video

https://youtu.be/G9EojDQtwoc

The manual and video use independent QR codes, allowing students, parents and teachers to access each resource separately.

The video is a supporting guide. Always follow the safety instructions and written connection guidance supplied with the kit.

DIY Assembly and Direct Experimentation

This is a DIY terminal-wiring kit, not a fully pre-wired working model.

The controller module and rocker-switch harness are supplied as functional components, but students complete the guided power and motor connections through the screw-terminal blocks.

The activity includes:

• Identifying positive and negative wires
• Connecting the battery snap to the power-input terminals
• Connecting the motor wires to the output terminals
• Tightening terminal screws
• Connecting the rocker-switch harness
• Fitting the propeller onto the motor shaft
• Testing speed and direction

This allows students to focus on practical circuit connection and motor-control observation without requiring soldering.

Watch the Motor Respond

Follow the guided demonstration sequence:

Step 1 — Prepare the Components

Place the controller, motor, propeller, screwdriver and battery connector on a clean, dry and stable surface.

Keep the battery disconnected while making the electrical connections.

Step 2 — Connect the Power Input

Connect:

• The red battery-snap wire to the positive power-input terminal
• The black battery-snap wire to the negative or ground terminal

Tighten the screws carefully using the included screwdriver.

Step 3 — Connect the Motor Output

Connect:

• The red motor wire to the positive motor-output terminal
• The black motor wire to the negative motor-output terminal

Ensure the exposed wire ends are fully inserted and securely tightened.

Step 4 — Connect the Direction Switch

Connect the three-pin rocker-switch harness to the matching header on the PWM controller module.

Do not force the connector.

Step 5 — Attach the Propeller

Push the four-blade propeller carefully onto the DC motor shaft.

The propeller should be centred and securely fitted without excessive force.

Step 6 — Connect the Battery

Attach one fresh 9V battery to the supplied snap connector.

Keep fingers, hair and loose clothing away from the propeller.

Step 7 — Select a Direction

Move the rocker switch from OFF to either Forward or Reverse.

Step 8 — Adjust the PWM Knob

Rotate the controller knob gradually.

Observe how the propeller speed increases or decreases as the knob position changes.

Step 9 — Reverse the Rotation

Return the switch to OFF and allow the propeller to stop.

Move the switch to the opposite direction and observe the reversed motor rotation.

Step 10 — Finish the Demonstration

Return the rocker switch to OFF and disconnect the battery after use.

How PWM Speed Control Works

PWM stands for Pulse Width Modulation.

Instead of controlling motor speed only by continuously reducing voltage through a simple resistance, a PWM controller rapidly switches electrical power ON and OFF.

This switching occurs many times per second.

The proportion of each switching cycle during which the power remains ON is called the duty cycle.

• A lower duty cycle supplies power for a smaller portion of each cycle.
• A higher duty cycle supplies power for a larger portion of each cycle.
• Changing the duty cycle changes the motor’s average electrical input.
• The motor responds by changing its rotational speed.

The rapid switching is not usually visible to the eye, but its effect can be observed through the propeller.

Turning the Knob

When the student rotates the control knob:

1. The controller changes the PWM duty cycle.
2. The average power delivered to the motor changes.
3. The motor speed increases or decreases.
4. The propeller provides visible kinetic feedback.

The model demonstrates the principle of controlled motor-speed regulation. It does not measure or display a calibrated RPM value.

How Direction Control Works

The three-position rocker switch changes the polarity supplied to the motor.

A DC motor’s rotational direction depends on the direction of current through the motor.

The switch positions provide:

• Position I: rotation in one direction
• Position O: motor OFF
• Position II: rotation in the opposite direction

When the switch changes the polarity:

1. The electrical direction through the motor changes.
2. The motor shaft reverses its rotation.
3. The propeller rotates in the opposite direction.

The exact visual designation of Forward and Reverse depends on the viewing position and motor-wire connection. The important learning outcome is the relationship between polarity and rotational direction.

Why PWM Motor Control Matters

Motor-speed control is used in many electrical and electronic systems.

A controlled motor may be required to:

• Start or operate at different speeds
• Change its mechanical output
• Match the needs of a mechanism
• Reverse direction
• Stop safely
• Respond to an electronic control signal

PWM-based control is commonly explored as a foundational concept before students progress to more advanced robotics, automation and embedded-control systems.

This educational kit simplifies the concept into an observable demonstration:

Battery Input → PWM Controller → Direction Switch → DC Motor → Rotating Propeller

Understand the Complete Functional System

---

From Electrical Control to Mechanical Motion

The Motor Kit helps students follow the complete pathway from electrical input to visible movement.

Electrical Input

The battery supplies electrical energy to the controller.

Electronic Control

The PWM module regulates how the motor receives power.

Direction Selection

The rocker switch determines the polarity supplied to the motor.

Motor Response

The DC motor converts electrical input into shaft rotation.

Visual Output

The propeller makes the motor’s speed and direction visible.

This connected sequence helps students understand that a motor is not operating independently. Its behaviour depends on the power source, wiring, controller setting, switch position and mechanical load.

Test. Observe. Discover.

Students can perform supervised comparisons such as:

Test 1 — Low and High PWM Settings

Begin with a low knob setting and gradually increase it.

Observe how the propeller speed changes.

Test 2 — Forward and Reverse

Operate the motor in one switch position, return it to OFF and then select the opposite position.

Observe the change in rotational direction.

Test 3 — Starting Response

Begin at a very low PWM setting and observe when the motor begins to rotate.

Different battery conditions and mechanical resistance may affect the starting point.

Test 4 — Loose and Secure Connections

With the battery disconnected, compare a properly secured terminal connection with a visibly loose connection.

Do not intentionally power an unsecured circuit.

Test 5 — Battery Condition

Compare the motor response using a fresh battery and a battery with reduced output.

Do not mix batteries or connect multiple batteries.

Learn Through Every Demonstration

The kit supports students in practising:

• Component identification
• Positive and negative polarity recognition
• Safe screw-terminal wiring
• PWM speed adjustment
• Forward and reverse motor control
• OFF-position use
• Motor-shaft and propeller fitting
• Observation of rotational motion
• Comparison of motor response
• Fault identification
• Safe shutdown and battery disconnection
• Explanation of a complete functional system

Explore Key Concepts

The Motor Kit can support the exploration of:

• Pulse Width Modulation
• Duty cycle
• DC motor operation
• Electrical polarity
• Forward and reverse rotation
• Motor speed regulation
• Screw-terminal wiring
• Battery-powered circuits
• Electrical-to-mechanical energy conversion
• Rotational motion
• Propeller-based visual feedback
• Circuit continuity
• Input and output terminals
• Safe low-voltage experimentation
• Observation and troubleshooting
• Robotics and automation foundations

One Kit. Multiple Learning Outcomes.

Students can use the same kit to explore different questions:

• What happens when the PWM knob is rotated?
• Why does the motor speed change?
• What is a PWM duty cycle?
• How does changing polarity reverse a DC motor?
• Why is there an OFF position?
• What happens when a terminal is loose?
• Why must positive and negative connections be checked?
• How does a motor convert electrical input into movement?
• Why does battery condition affect motor response?
• How can the same concept be applied to robotics or automation?

Built for Confident Demonstration

The Motor Kit is suitable for supervised use during:

• School science projects
• Electronics projects
• Educational working-model presentations
• Science exhibitions
• Classroom demonstrations
• STEM activities
• Robotics concept sessions
• Practical examinations
• Project reports
• Viva and oral explanations
• Parent-supported home learning

The compact component arrangement allows students to point to each stage of the working system while explaining it.

Suggested Student Explanation

“This is a PWM DC motor speed-and-direction controller project. The battery supplies power to the PWM controller. The knob changes the duty cycle, which changes the average power supplied to the motor and therefore changes its speed. The three-position switch selects one direction, OFF or the opposite direction. Changing the polarity reverses the motor rotation. The propeller helps us observe both speed and direction clearly.”

Build Upon the Foundation

After understanding the basic kit, students may use the concept as a foundation for studying:

• Motorised school projects
• Model vehicles
• Robotics
• Automation
• Conveyor-belt concepts
• Direction-controlled mechanisms
• Fan-speed-control concepts
• Motorised doors
• Small mechanical models
• Embedded motor control
• Electronic switching
• Feedback and control systems

These are concept extensions only. Additional components, circuits, engineering knowledge and appropriate safety controls would be required for any expanded project.

This Concept Can Also Be Used to Explore

Robotics

Robots frequently use DC motors for movement, wheels, arms and mechanisms.

Model Vehicles

Direction and speed control are fundamental to powered vehicle models.

Automation

Automated systems may use controlled motors to move, rotate or position components.

Conveyor Mechanisms

Conveyor demonstrations can use motor direction and speed control to represent material movement.

Small Fan Systems

A DC motor and propeller can illustrate basic airflow and variable-speed concepts.

Electrical Polarity

The reverse function provides a visible example of how polarity affects a DC motor.

Electronic Control

PWM introduces the idea that electronic switching can regulate mechanical output.

Concept, Learning-Approach and SDG Connections

The kit can support learning approaches such as:

• Experiential learning
• Inquiry-based learning
• Project-based learning
• STEM education
• Conceptual understanding
• Observation and problem solving
• Technological literacy
• Practical electronics
• Guided experimentation

It may also be discussed in relation to broad educational themes connected with:

SDG 4 — Quality Education

Hands-on circuit wiring, observation and explanation can support practical STEM learning.

SDG 9 — Industry, Innovation and Infrastructure

PWM control, motors, polarity switching and automation are foundational concepts used in engineering and technological systems.

These references describe broad educational relevance only. They do not represent formal alignment, certification or endorsement.

A Complete Learning Journey

The Motor Kit takes the learner through a connected sequence:

Identify → Connect → Assemble → Power → Control → Reverse → Observe → Troubleshoot → Explain

By the end of the guided activity, students should be better prepared to describe:

• What a PWM controller does
• How a duty cycle affects motor speed
• How polarity affects direction
• How screw terminals are connected
• How a DC motor creates rotation
• How the propeller provides visual feedback
• How faults can be identified safely
• How motor-control concepts connect with engineering and robotics

Important Educational and Usage Information

• This is a DIY educational motor-control demonstration kit.
• Suggested for Grades 7–12.
• Adult or teacher supervision is recommended.
• One fresh 9V battery is required.
• The battery is not included.
• Use only in a clean, dry and stable indoor environment.
• Never connect the kit to AC mains electricity.
• Check battery polarity before making the connection.
• Make all terminal connections while the battery is disconnected.
• Ensure that exposed wire ends are properly inserted into the terminals.
• Tighten screws carefully without overtightening.
• Prevent the positive and negative wires from touching.
• Keep fingers, hair, jewellery and loose clothing away from the rotating propeller.
• Return the direction switch to OFF before changing connections.
• Allow the motor to stop before reversing the direction.
• Disconnect the battery immediately after completing the demonstration.
• Do not leave the battery connected while the kit is unattended.
• Do not operate the kit near water, moisture, conductive surfaces or flammable materials.
• Do not deliberately stall or obstruct the motor.
• Do not apply excessive force to the motor shaft or propeller.
• Do not use the controller or motor as part of machinery, household appliances or commercial equipment.

Troubleshooting Guide

Stop using the kit if a component is damaged, produces an unusual smell, becomes excessively hot or shows signs of electrical failure.

Product Appearance and Component Variation Note

This kit contains small-batch educational electronic components and accessories.

Minor variations may occur in:

• Controller-board colour or layout
• Terminal-block colour
• Rocker-switch shape
• Knob design
• Heat-sink finish
• Motor finish
• Propeller colour or shade
• Screwdriver handle colour
• Battery-snap colour
• Wire length
• Connector appearance
• Component brand
• Printed markings
• Component placement

These minor variations may occur because of manufacturing or component availability and do not necessarily change the intended educational demonstration.

Images/creative illustration are for reference. Actual product may vary due to manufacturing, component availability & assembly update.

Important Product Limitation

This product is a simplified educational motor-control demonstration kit.

It is not intended or certified as:

• A household appliance
• A finished consumer fan
• An industrial motor controller
• A machinery-control system
• A commercial electrical product
• A vehicle motor controller
• A robotics-control system for unattended operation
• A safety-critical switching device
• A substitute for professional engineering equipment
• A calibrated RPM, torque, current or voltage measurement instrument

The behaviour of the motor may vary depending on battery condition, wiring quality, terminal contact, controller setting, propeller fitting, mechanical resistance and component variation.

Return, Refund and Exchange Notice

This educational project kit contains tested and sensitive electronic components. Kits that have been opened, connected, powered, activated, assembled, tested, used, altered, damaged, incorrectly wired or exposed to moisture or unsuitable operating conditions are not eligible for return, refund or exchange. The required 9V battery is not included. Please review the product description, included components, power requirement, product photographs, demonstration video and operating instructions carefully before purchase.

References and Educational-Mapping Notice

References to NEP 2020, NCERT/CBSE, SDGs and concept mapping are for illustrative, reference and educational-use purposes only. They indicate broad learning relevance and do not imply endorsement, affiliation, approval, certification or official alignment by any institution or authority. Concept mapping and learning relevance may vary depending on assembly, demonstration setup, supervision, curriculum and classroom use.

---
