Smart Soil Moisture Detection Using Soil Moisture Sensor Go Science Classroom Series

Pre-Wired Smart Farming School Project & Demonstration Kit

See soil conditions become an electronic signal.

Turn soil moisture, electrical conductivity and electronic switching into a live, observable learning experience.

The Go Science Classroom Series Smart Soil Moisture Detection Model brings a soil-moisture probe, comparator module, BC547 transistor switching circuit and audible buzzer together on one complete pre-wired working platform.

Students can prepare separate dry and wet soil samples, move the probe between them and observe how the system responds to changing soil conditions:

Check the Soil → Compare Moisture → Switch the Circuit → Produce an Alert

In the model’s configured demonstration:

Dry Soil → Alarm On
Wet Soil → Alarm Off

The model helps students explore how soil conditions can be sensed, compared against an adjustable threshold and converted into an automatic electronic response. It provides a practical foundation for understanding soil-moisture monitoring, electrical conductivity, transistor switching, smart farming and responsible water use.

Designed for Grades 7–12, the model is suitable for school projects, science exhibitions, classroom demonstrations, practical electronics activities and smart-agriculture presentations.

Product Specifications

The supplied documentation confirms the electronic components, dimensions, battery requirement and demonstration process.

A Complete Guided Learning Experience

Working model, digital manual and video demonstration—all connected.

Every Go Science Classroom Series kit is supported by a guided learning experience that helps students understand, test and confidently present the model.

This kit includes access to:

• A detailed full-colour digital instruction manual
• Illustrated component and working-principle explanations
• Step-by-step setup and demonstration guidance
• A complete video demonstration of the working model
• QR access for convenient viewing and downloading
• Safety, care and troubleshooting information
• Concept recap and Certificate of Completion

The learning journey is designed to take students through:

Explore → Understand → Prepare → Watch → Test → Observe → Explain → Complete

Students can first understand the model through the manual and video, then operate it under supervision, repeat the demonstration, record observations and use the learning material while preparing for a school presentation or science exhibition.

Detailed Full-Colour Digital Manual Included

Scan, learn and return whenever needed.

A QR code supplied inside the kit provides access to the dedicated digital instruction and learning manual.

Students can open the manual on a phone, tablet or computer and download it for future access during:

• Initial project preparation
• Model setup
• Classroom learning
• Repeated testing
• Science-exhibition preparation
• Project-report writing
• Viva preparation
• Revision and concept recap

The current manual contains 18 colourful, illustrated pages created specifically for the Smart Soil Moisture Detection model.

It includes:

• A visual introduction to the model
• A complete guide to the supplied components
• Explanation of the soil-moisture probe
• Comparator-module working
• BC547 transistor-switching concepts
• Wet-soil and dry-soil comparison
• Illustrated step-by-step demonstration instructions
• Safety and operating guidance
• Smart-farming and water-conservation connections
• Fun facts and learning prompts
• Concept recap
• Printable Certificate of Completion

The manual’s component guide appears on page 5, the working sequence and wet-versus-dry comparison on pages 6–7, the illustrated operating steps on pages 8–11, learning facts on pages 12–13, safety guidance on page 14, the concept recap on page 15 and the Certificate of Completion on page 17.

Step-by-Step Video Demonstration Included

Watch the actual model before running the test.

Every kit also provides access to a dedicated video demonstration showing the model and its working sequence.

The video helps students visually understand:

• The complete model layout
• The soil-moisture probe
• The comparator and driver circuit
• The two demonstration containers
• Correct 9V battery connection
• Preparation of wet and dry soil samples
• Probe placement
• The wet-soil response
• The dry-soil alarm response
• How to move between test conditions
• How to conclude the demonstration safely

The demonstration video can be accessed in three convenient ways:

Product Gallery

The video is included with the product images on the Go Science product page, allowing parents, teachers and students to view the working model before purchase.

Go Science YouTube Channel

The demonstration is also available through the official Go Science YouTube presence for convenient viewing, sharing and revision.

QR Code on the Kit Box

A QR code printed on the side of the product box provides direct access to the demonstration video.

Students can scan the code whenever they need to revisit the setup or working sequence.

This makes support available before, during and after the project:

Scan → Watch → Prepare → Demonstrate → Rewatch

Internet access and a compatible QR-scanning device are required to open the online video.

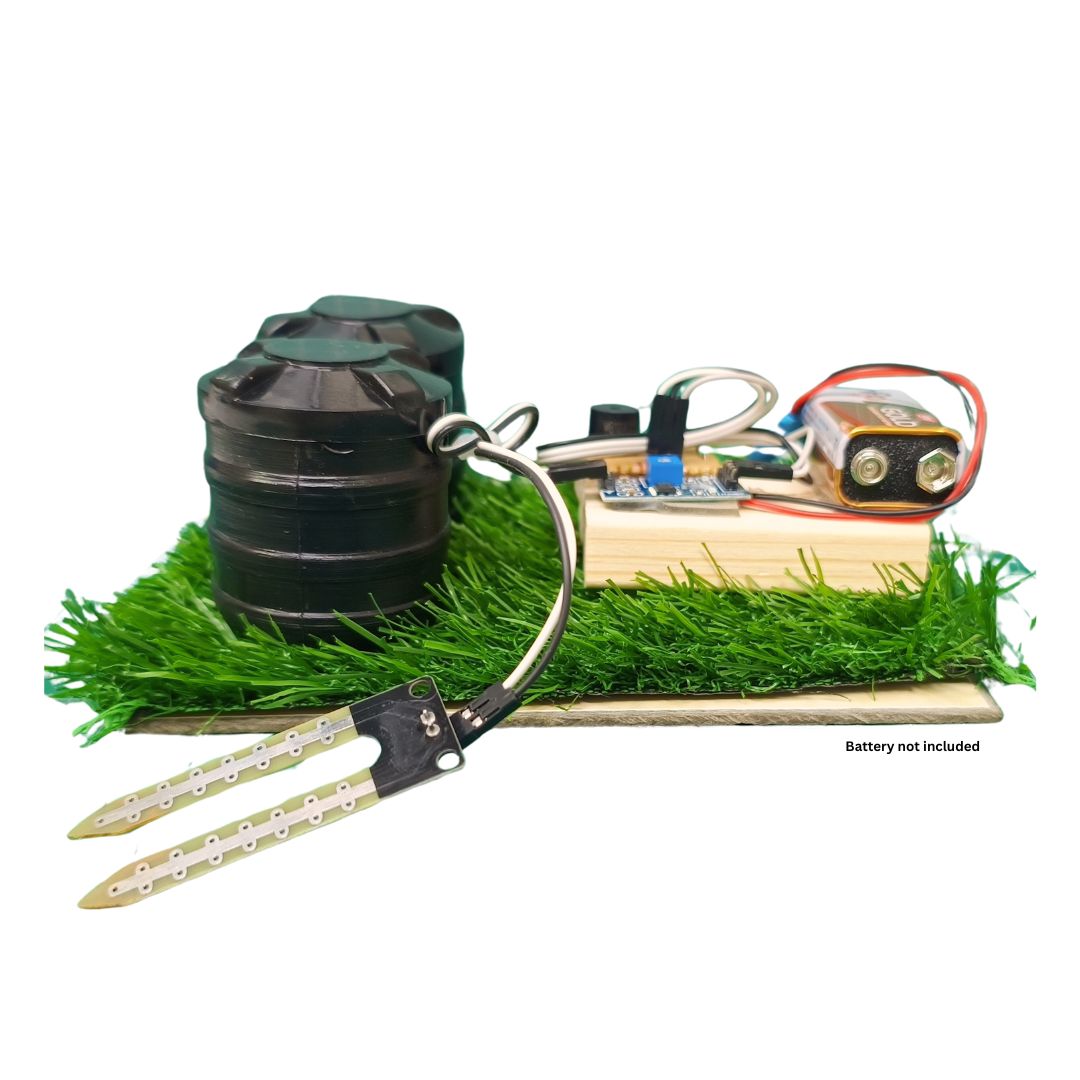

What’s in the preassembled Kit?

• Soil-moisture sensor probe
• Comparator control module with adjustable potentiometer
• Custom general-purpose driver board
• BC547 NPN transistor-switching circuit
• 5V active buzzer
• Two empty soil-demonstration containers
• Pre-wired electrical connections
• Battery snap connector
• Wooden component-support base
• Decorative artificial-grass layout
• Ready-to-use educational working model
• QR access to the detailed digital manual
• Detailed 18-page full-colour digital instruction manual
• QR access to the video demonstration from the kit box
• Step-by-step video demonstration
• Illustrated testing guidance
• Component and working-principle explanations
• Safety, care and troubleshooting guidance
• Concept recap and Certificate of Completion

Required Separately

9V Battery

The model requires one fresh 9V battery.

Battery is not included.

Dry and Wet Soil Samples

Soil is not supplied with the kit.

Users must prepare:

• One suitable dry soil, dry earth or dry sand sample
• One evenly damp soil sample

Only small quantities are required for the two supplied demonstration containers.

The soil shown in product photographs, packaging artwork, manuals and videos is used to illustrate the demonstration and is not included with the product.

Learn Before, During and After the Demonstration

Before the Demonstration

Students can:

• Watch the complete video
• Read the digital manual
• Identify every component
• Prepare suitable dry and wet soil samples
• Understand correct battery orientation
• Review the wet-versus-dry response
• Learn the safety and care instructions

During the Demonstration

Students can:

• Follow the illustrated instructions
• Refer to the video sequence
• Insert the probe correctly
• Compare the two soil conditions
• Observe the comparator response
• Listen for the dry-soil warning
• Move between test conditions
• Repeat the activity under supervision

During the Presentation

Students can use the supplied learning material to explain:

• Soil-moisture sensing
• Electrical conductivity
• Resistance differences
• Comparator thresholds
• Digital output
• BC547 transistor switching
• Audible warning systems
• Smart-farming applications
• Responsible irrigation concepts

After the Demonstration

Students can:

• Review the concept recap
• Rewatch the demonstration
• Revisit the troubleshooting guide
• Prepare their project explanation
• Complete their project report
• Download or print the Certificate of Completion

From Soil Condition to Audible Alert

Explore how sensing, comparison and switching work together.

The model presents soil-moisture detection as one connected functional system.

The probe responds to the electrical condition of the prepared soil sample. The comparator module evaluates that response against an adjustable threshold. Its output then controls a BC547 transistor switching circuit, which determines whether the active buzzer remains silent or produces a dry-soil warning.

Students can follow the complete pathway:

Soil → Probe → Comparator → Transistor Switch → Buzzer

Each component performs a specific role, allowing students to understand how multiple electronic stages combine to produce an automatic response.

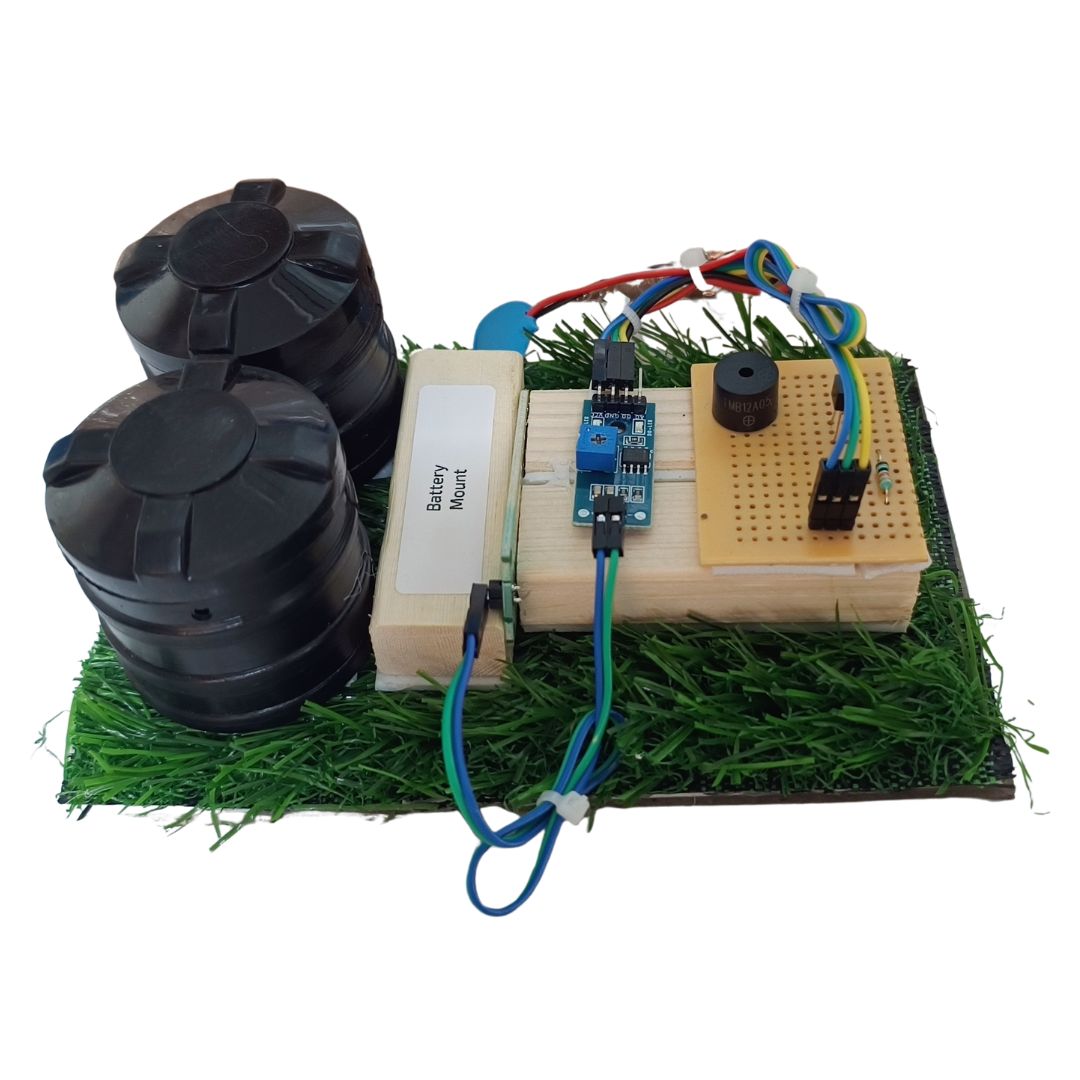

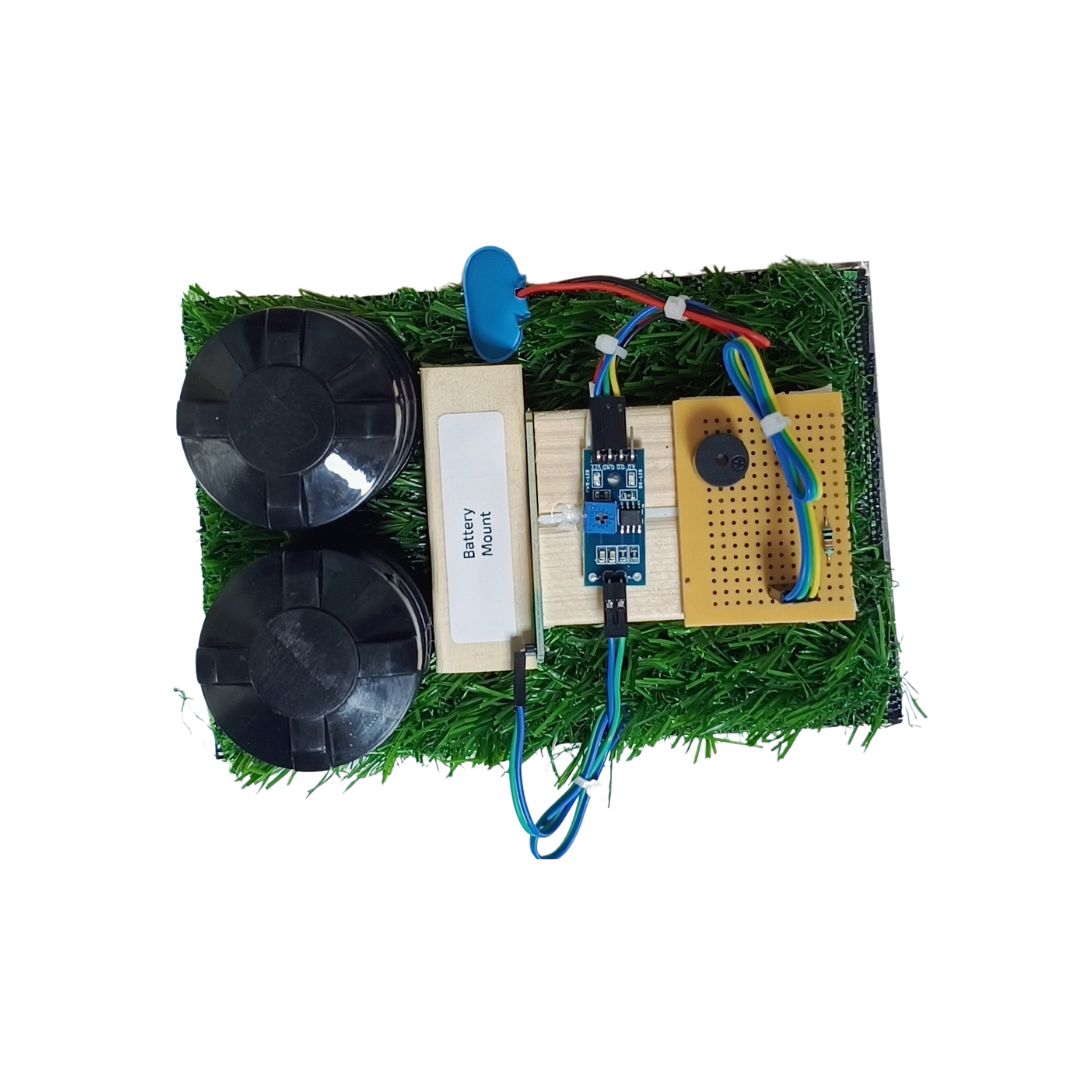

Pre-Wired for Direct Exploration

Begin with a complete working foundation.

The sensing probe, comparator module, transistor driver circuit, buzzer and battery connection are integrated into a pre-wired and pre-assembled demonstration platform.

This working foundation allows students to move directly into meaningful exploration:

• Prepare and compare dry and wet soil samples
• Observe the sensor and module indicators
• Follow the signal through every stage
• Hear the dry-soil warning
• Conduct repeated demonstrations
• Observe how threshold adjustment affects the response
• Record and compare findings
• Investigate changes in system behaviour
• Understand the purpose of each component
• Troubleshoot unexpected responses
• Explain the complete model confidently
• Develop further smart-farming ideas

The model is designed to be:

Observed → Tested → Retested → Understood → Explained → Built Upon

Watch the Complete System Respond

1. Prepare the Soil Samples

Prepare one container with sufficiently dry soil or dry sand and the second container with evenly damp soil.

The soil samples are used to create two contrasting testing conditions.

2. Check the Soil

Insert the soil-moisture probe gently into one prepared sample.

Its exposed conductive tracks interact with the surrounding soil and respond to the electrical path between them.

3. Compare the Moisture Condition

The probe sends its response to the comparator module.

The module compares the probe response against the threshold selected through its onboard adjustment control.

4. Send the Output Signal

After comparing the condition with the selected threshold, the comparator module changes its digital output state.

This output is directed toward the transistor driver circuit.

5. Switch the Circuit

The signal reaches the custom general-purpose driver board containing the BC547 NPN transistor.

The transistor operates as an electronic switch controlling the active buzzer.

6. Produce the Response

When the probe is placed in the prepared dry-soil sample, the model’s configured circuit activates the buzzer and produces an audible warning.

When the probe is placed in sufficiently wet soil, the circuit changes state and the buzzer remains silent.

The complete response is:

Probe checks soil → Module compares moisture → Transistor switches → Buzzer responds

The supplied documentation and box artwork confirm the configured dry-soil and wet-soil response.

Explore the Soil-Moisture Probe

Observe how moisture affects electrical behaviour.

The soil-moisture probe contains two exposed conductive tracks.

When inserted into soil, the electrical path between these tracks changes according to factors such as:

• Moisture level
• Soil composition
• Probe depth
• Probe position
• Distribution of water
• Contact between the probe and soil
• Comparator threshold setting

Moist soil generally provides a stronger conductive path between the tracks. Drier soil generally provides greater resistance and a weaker conductive path.

The probe provides the initial input that the comparator module uses to determine the model’s response.

Students can explore:

• Soil moisture
• Dry and wet soil conditions
• Electrical conductivity
• Resistance changes
• Conductive sensor tracks
• Sensor input
• Moisture-dependent behaviour
• Cause-and-effect relationships
• Physical conditions translated into electronic signals

This model demonstrates a threshold-based comparison between prepared test samples. It does not provide a calibrated numerical moisture percentage.

Discover the Comparator Module

See how a threshold helps the system make a decision.

The comparator module receives the probe response and compares it with an adjustable reference level.

This introduces an important electronic concept: a sensor may produce a changing response, while a comparator determines when that response crosses a selected threshold.

Students can observe:

• The probe providing the input
• The module evaluating the input
• The indicator changing state
• The digital output controlling the driver circuit
• The buzzer responding to the selected threshold

The onboard potentiometer allows the response point to be adjusted carefully under adult or teacher supervision.

Students can investigate:

• At what condition does the output change?
• How does the threshold affect the buzzer?
• Why do different soil samples produce different responses?
• Does probe depth influence the result?
• Does unevenly distributed moisture affect the reading?
• How can the model be reset and tested again?

Explore BC547 Transistor Switching

Turn a control signal into an audible response.

The model includes a custom general-purpose driver board fitted with a BC547 NPN transistor and a 5V active buzzer.

The transistor acts as an electronic switch between the comparator output and the buzzer circuit.

In the configured demonstration:

1. The probe responds to the soil condition.
2. The comparator evaluates that response.
3. The comparator sends its digital output to the driver circuit.
4. The BC547 transistor changes its switching state.
5. The buzzer is activated or remains silent.

Students can explore:

• NPN transistors
• Electronic switching
• Base, collector and emitter terminals
• Cut-off and saturation states
• Signal-controlled output circuits
• Solid-state switching
• Input, control and output stages
• How one electronic stage controls another
• How circuits respond automatically to changing conditions

Compare Dry and Wet Soil

Two contrasting samples create a clear demonstration.

The kit includes two empty testing containers that students can prepare for the activity.

Dry-Soil Demonstration

Fill one container with sufficiently dry soil, dry earth or suitable dry sand.

Insert the cleaned and dried probe into the sample.

The higher-resistance condition changes the comparator output and activates the model’s transistor-controlled buzzer circuit.

The audible alert represents a dry-soil or watering-required warning concept.

Wet-Soil Demonstration

Prepare the second container with evenly damp soil.

Remove the probe from the dry sample, clean it if required and insert it into the wet sample.

The increased moisture changes the conductive path between the probe tracks. The comparator and transistor circuit respond accordingly, keeping the buzzer silent in the model’s configured demonstration.

Reset and Repeat

Remove the probe, wipe it clean and repeat the comparison.

The two-container format allows students to move between contrasting conditions and observe how the system responds and resets.

Understand the Complete Functional System

A Smart-Farming Context Students Can Understand

Connect soil science with electronics and responsible water use.

The agricultural layout and testing containers provide a clear application context for the electronic system.

Each element represents a stage within a smart-farming concept:

• The prepared soil samples represent changing field conditions.
• The probe observes the soil.
• The comparator module evaluates the response.
• The BC547 transistor performs electronic switching.
• The buzzer communicates the dry-soil condition.
• The battery powers the demonstration.
• The manual and video guide the complete learning process.

The project helps students connect:

• Soil condition
• Plant water requirements
• Sensor-based monitoring
• Threshold comparison
• Electronic switching
• Audible alerts
• Smart-irrigation concepts
• Responsible water use
• Agricultural automation

The model is an educational representation of these concepts. It is not a calibrated agricultural instrument or commercial irrigation controller.

Test. Observe. Discover.

Dry and Wet Comparison Test

Prepare one dry sample and one wet sample.

Place the probe in each condition and record the response.

Moisture-Change Test

Begin with a relatively dry sample and add small, measured quantities of water.

After each addition:

1. Mix the soil evenly.
2. Insert the probe to approximately the same depth.
3. Observe the module indicator.
4. Listen for the buzzer.
5. Record whether the system changed state.

Probe-Depth Observation

Insert the probe to different controlled depths in the same sample.

Observe whether probe placement influences the response.

Soil-Position Test

Test different positions within the same container.

This can help students understand that moisture may not be distributed evenly.

Repeatability Test

Return the probe to the same prepared condition several times.

Record whether the model produces a consistent response.

Threshold Exploration

Under adult or teacher supervision, make a small adjustment to the comparator potentiometer.

Repeat the tests and observe how the response point changes.

Only small adjustments should be made, and the original position should be noted before testing.

Learn Through Every Test

Predict

Will the buzzer sound in the selected sample?

Watch

Review the video demonstration before beginning.

Test

Insert the probe into the prepared condition.

Observe

Watch the module indicator and listen to the buzzer.

Record

Document the sample condition, probe position, threshold setting and result.

Compare

Move between dry and wet samples.

Analyse

Identify why the output changed or remained the same.

Troubleshoot

Check the battery, soil preparation, probe cleanliness, wire connections and sensitivity setting.

Explain

Describe how the probe, comparator, transistor and buzzer form one complete system.

Extend

Develop additional questions about irrigation, sensor technology and agricultural automation.

Explore Key Concepts

Soil and Water

• Soil moisture
• Dry and wet soil
• Water distribution
• Soil conductivity
• Moisture-dependent resistance
• Responsible water use

Sensor Technology

• Soil-moisture probes
• Sensor inputs
• Threshold detection
• Comparator modules
• Adjustable sensitivity
• Digital output response

Electronic Switching

• BC547 NPN transistor
• Base, collector and emitter
• Cut-off and saturation
• Solid-state switching
• Buzzer control
• Input and output circuits

Smart Farming

• Soil-condition monitoring
• Dry-soil warning concepts
• Irrigation decision support
• Agricultural automation
• Resource-aware watering
• Sensor-based farming

Practical Investigation

• Controlled testing
• Repeatability
• Comparison
• Observation tables
• Troubleshooting
• Cause-and-effect reasoning

Built for Confident Demonstration

The clear wet-versus-dry comparison, audible response and guided learning material make the model suitable for:

• School science projects
• Science exhibitions
• Classroom demonstrations
• Smart-farming presentations
• Soil-science activities
• Water-conservation projects
• Sensor demonstrations
• Transistor-switching demonstrations
• Electrical-conductivity activities
• Agricultural-technology discussions
• STEM learning
• Experiential learning
• Project-based learning
• Project-report preparation
• Viva preparation
• Grades 7–12

Suggested Student Explanation

“This is a smart soil-moisture detection working model. The probe checks the electrical condition of the prepared soil sample and sends its response to the comparator module. The comparator compares this response with an adjustable threshold. Its digital output controls a BC547 transistor, which acts as an electronic switch for the buzzer. In this model, dry soil activates the warning buzzer, while sufficiently wet soil keeps the alarm off. The project demonstrates soil-moisture sensing, electrical conductivity, threshold comparison, transistor switching and smart-farming concepts.”

Build Upon the Foundation

Once students understand the original sensing and alert sequence, the model can inspire further questions:

• Could an LED provide a visual dry-soil warning?
• Could another output be controlled?
• Could a relay respond to the sensor signal?
• Could a model water pump be introduced?
• Could a second probe compare another sample?
• Could different soil types be tested?
• Could moisture be displayed numerically?
• Could readings be recorded over time?
• Could a microcontroller introduce irrigation logic?
• Could underwatering and overwatering both be represented?
• Could the concept be expanded into a greenhouse model?

These are further learning directions. Additional components, modifications and suitable guidance may be required.

This Concept Can Also Be Used to Explore

• Smart-irrigation concepts
• Automatic plant-watering systems
• Dry-soil warning systems
• Agricultural moisture monitoring
• Greenhouse monitoring
• Garden-watering indicators
• Plant overwatering awareness
• Soil-conductivity comparisons
• Threshold-based control systems
• Transistor-switching projects
• Water-level warning concepts
• Liquid-conductivity experiments
• Sensor-controlled pump concepts
• Precision-agriculture concepts
• Input-process-output systems
• Agricultural automation

These are educational concept extensions based on the working principle. They are not additional built-in functions of the supplied model.

A Complete Learning Journey

Scan the code.

Watch the demonstration.

Read the manual.

Prepare the samples.

Check the soil.

Compare the condition.

Follow the signal.

Hear the warning.

Record the result.

Explain the system.

Build upon the idea.

The Go Science Smart Soil Moisture Detection Model transforms soil condition, conductivity and electronic switching into a guided working experience students can observe, test, understand and confidently demonstrate.

Important Educational and Usage Information

This product is an educational demonstration model and science teaching aid.

• Adult or teacher supervision is recommended.
• Soil and battery are not included.
• Prepare soil samples separately before the demonstration.
• Use only small soil quantities inside the supplied containers.
• Keep excess water away from the comparator module, driver board, buzzer and battery terminals.
• Do not pour water directly over any electronic component.
• Insert and remove the probe gently.
• Wipe the probe clean and dry after wet-soil testing.
• Do not bend, scrape or force the probe tracks.
• Keep every buzzer demonstration brief.
• Connect the battery using the correct terminal orientation.
• Disconnect the battery immediately after every test.
• Do not store the model with the battery connected.
• Empty and clean the containers before packing.
• Store the model in a cool and dry place.
• Product appearance, wire routing, component placement and assembly details may vary slightly due to manufacturing and component availability.
• Internet access is required to open online manual and video links.

This model is not intended for use as a calibrated agricultural instrument, automatic irrigation controller, commercial smart-farming system or water-management device.

Return, Refund & Exchange Notice: This educational working model contains tested and sensitive electronic components. Kits that have been opened, powered, activated, tested, used, altered or exposed to soil, moisture or water are not eligible for return, refund or exchanged. Battery and soil are not included. Please review the product description, included contents, dimensions, power requirement, demonstration video and usage instructions carefully before purchase.
